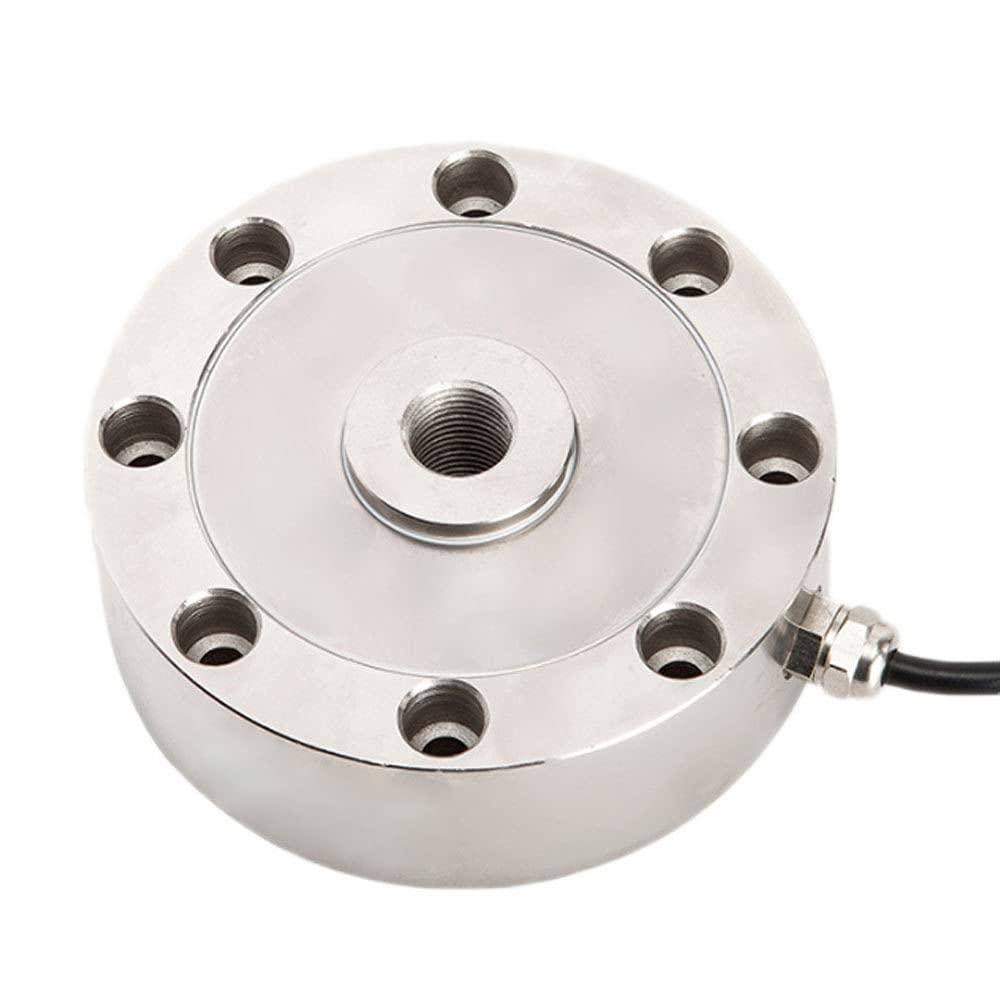

The term "pancake" comes from its flat, disk-like shape, resembling a pancake. These load cells are characterized by their low profile and high capacity-to-size ratio, making them ideal for applications where vertical space is limited.
Key Features
- Low-profile, pancake-style design for space-constrained applications.
- High capacity-to-size ratio for efficient force measurement.
- Constructed from durable alloy steel for long-lasting performance.
- Available in a wide range of capacities from 100 kg to 10,000 kg.
- Accuracy levels of ±0.1% or better ensure precise measurements.
- Analog output for seamless integration with existing systems.
- Operating temperature range from -20°C to 80°C for versatile use.
- IP65 protection rating for resistance against dust and water ingress.
- Suitable for industrial weighing, materials testing, automotive testing, and aerospace applications
Technical Specifications
- Capacity Range: 100 kg to 10,000 kg
- Material: Alloy Steel
- Accuracy: ±0.1% (Standard)
- Output: Analog (0-5 VDC, 4-20 mA)
- Excitation Voltage: 5VDC
- Operating Temperature Range: -20°C to 80°C
- Protection Rating: IP65
- Compliance: CE, RoHS
Certifications and Compliance:
- ISO 9001:2015 certified
- CE and RoHS compliant
Applications
- Platform scales
- Materials testing machines
- Automotive testing rigs
- Aerospace structural testing
Warranty and Support: Available
NOTE- Please Contact us to customized your product with requirment
